Harvel Tractors

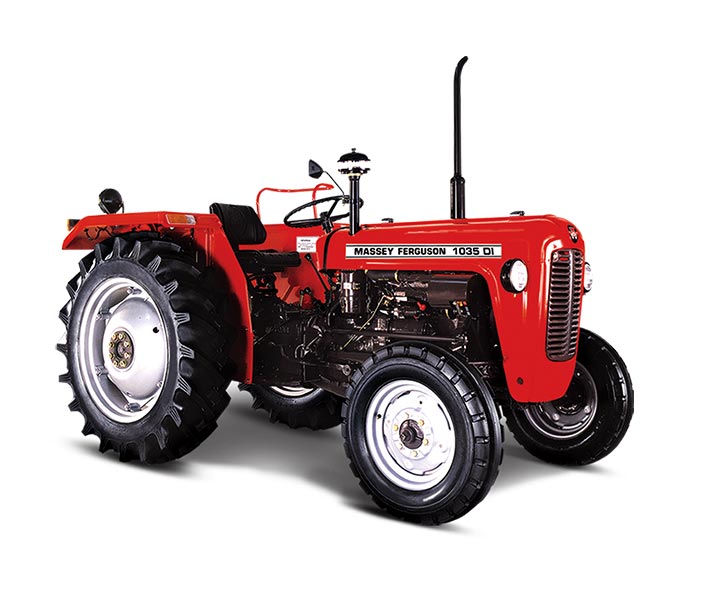

MF 1035 DI (36 HP)

MF 1035 DI (36 HP)


Power Range (hp Range) 36 HP (26.47 kW)
Engine SIMPSONS S324 TIII A
Cylinders 3
Cubic Capacity 2400 cc (2.40L)
Fuel Injection Pump Inline
Clutch Type Single
Transmission Type Sliding mesh
Number of Speeds 6 Forward + 2 Reverse
Option: 8 Forward + 2 Reverse
Tyre Dimensions 6.00 x 16 (15.24 cm x 40.64 cm) Front
12.4 x 28 (31.49 cm x 71.12 cm) Rear
Option: 13.6 x 28(34.54 cm x 71.12 cm) Rear
Forward Speed @ rated RPM 23.8 kmph
PTO Type Live, Single-speed PTO
PTO Speed 540 RPM @ 1650 ERPM
Hydraulics Lifting Capacity (Lower Links at Horizontal Position) 1100 kgf
Three-point Linkage and Controls Draft, position and response control. Links fitted with CAT-1 (Combi Ball)
Brake Type Dry disc brakes (Dura Brakes)
Steering Type Manual steering
Electricals 12 V 75 Ah Battery, 12 V 36 A Alternator
Overall Length 3120 mm
Overall Width 1675 mm
Overall Height 2185 mm
Wheelbase 1830 mm
Total Weight 1713 kg
Fuel Tank Capacity 47 L
Features Optional: Adjustable seat, raised platform
