Harvel Tractors

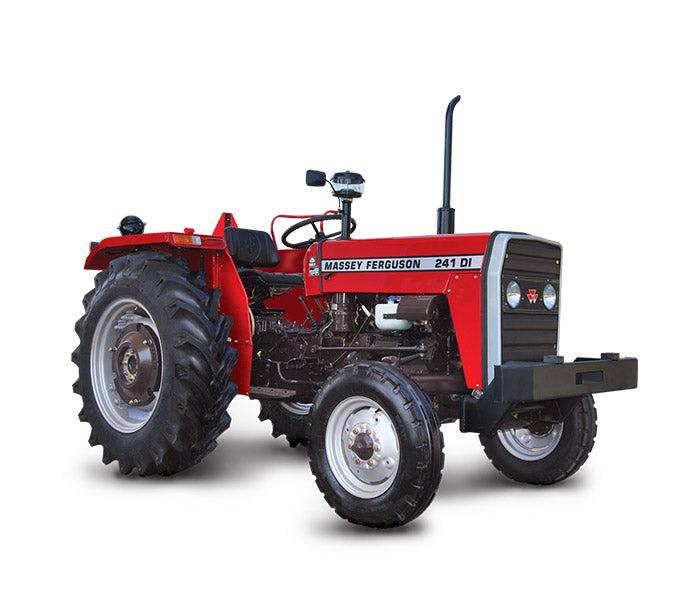

MF 241 DI (42HP)

MF 241 DI (42HP)



Power Range (hp Range) 42 HP (30.88 kW)
Engine SIMPSONS S325.1 TIII A
Cylinders 3
Cubic Capacity 2500 cc (2.50L)
Fuel Injection Pump Inline
Clutch Type Dual
Transmission Type Sliding mesh / Partial constant mesh
Number of Speeds 8 Forward + 2 Reverse
Option: 10 Forward + 2 Reverse
Tyre Dimensions 6.00 x 16 (15.24 cm x 40.64 cm) Front
12.4 x 28 (31.49 cm x 71.12 cm) Rear
Option: 13.6 x 28 (34.54 cm x 71.12 cm) Rear
Forward Speed @ rated RPM 30.4 kmph
PTO Type Live, Six-splined shaft
PTO Speed 540 RPM @ 1500 ERPM
Option: 540 RPM @ 1906 ERPM
Hydraulics Lifting Capacity (Lower Links at Horizontal Position) 1700 kgf
Three-point Linkage and Controls Draft, position and response control. Links fitted with CAT-1 (Combi Ball)
Brake Type Sealed dry disc brakes / Multi disc oil immersed brakes
Steering Type Manual steering / Power steering
Electricals 12 V 75 Ah Battery, 12 V 36 A Alternator
Overall Length 3340 mm
Overall Width 1690 mm
Overall Height 2200 mm
Wheelbase 1785 mm
Total Weight 1875 kg
Fuel Tank Capacity 47 L
