Harvel Tractors

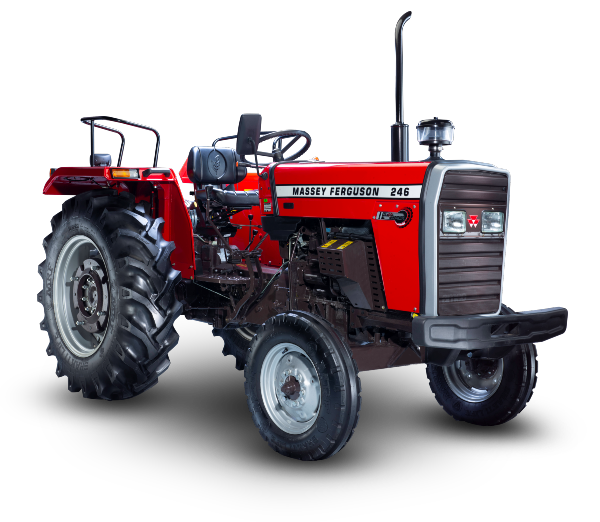

MF 246 DYNATRACK 2WD (46HP)

MF 246 DYNATRACK 2WD (46HP)



Power Range (hp Range) 46 HP (33.82 kW)
Engine SIMPSONS S325.5 TIII A
Cylinders 3
Cubic Capacity 2700 cc (2.7L)
Fuel Injection Pump Inline
Clutch Type Dual diaphragm
Transmission Type Fully constant mesh
Number of Speeds 12 Forward + 12 Reverse
Tyre Dimensions 6.00 x 16 (15.24 cm x 40.64 cm) Front
14.9 x 28 (37.85 cm x 71.12 cm) Rear
Forward Speed @ rated RPM 34.5 kmph
PTO Type Quadra PTO, Six-splined shaft
PTO Speed 540 RPM @ 1789 ERPM
Hydraulics Lifting Capacity (Lower Links at Horizontal Position) 2050 kgf
Three-point Linkage and Controls Draft, position and response control. Links fitted with CAT-1 (Combi Ball)
Brake Type Multi disc oil immersed brakes
Steering Type Manual steering / Power steering
Electricals 12 V 80 Ah Battery, 12 V 36 A Alternator
Overall Length 3650 mm
Overall Width 1760 mm
Overall Height 2415 mm
Wheelbase 1935 mm for field applications; 2035 mm for Haulage
Total Weight 2010 kg
Fuel Tank Capacity 55 L
