Harvel Tractors

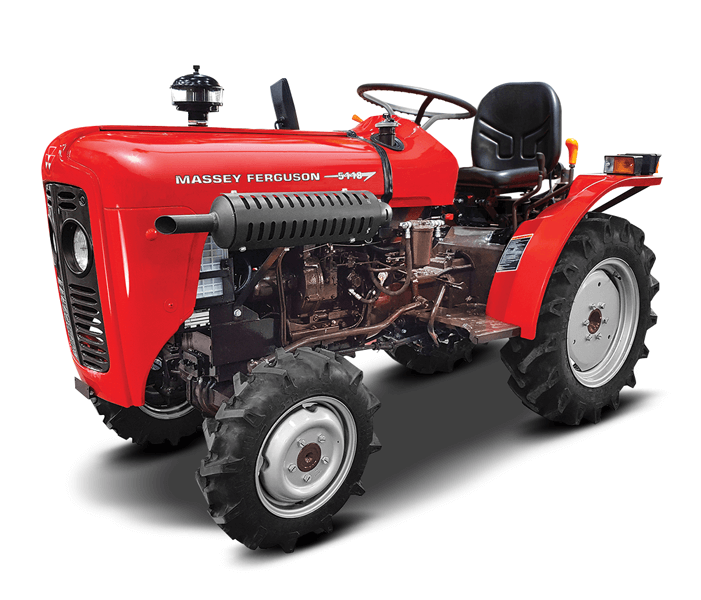

MF 5118 4WD (20 HP)

MF 5118 4WD (20 HP)


Power Range (hp Range) <20 HP range
Engine 182E15
Cylinders 1
Cubic Capacity 825cc (0.82L)
Fuel Injection Pump Inline
Clutch Type Single diaphragm
Transmission Type Sliding mesh
Number of Speeds 8 Forward + 2 Reverse
Tyre Dimensions 5 x 12 (12.7 cm x 30.48 cm) Front
8 x 18 (20.32 cm x 45.72 cm) Rear
Forward Speed @ rated RPM 21.68 kmph
PTO Type Live, Two-speed PTO
PTO Speed 540 @ 2180 ERPM and 540 RPM @ 1478 ERPM
Hydraulics Lifting Capacity (Lower Links at Horizontal Position) 750 kgf
Three-point Linkage and Controls Draft, position and response control.
Links fitted with CAT-1 N
Brake Type Multi disc oil immersed brakes
Steering Type Manual steering
Electricals 12 V 75 Ah Battery, 12 V 35 A Alternator
Overall Length 2610 mm
Overall Width 950 mm
Overall Height 1310 mm
Wheelbase 1420 mm
Total Weight 839 kg
Fuel Tank Capacity 28.5 L
