Harvel Tractors

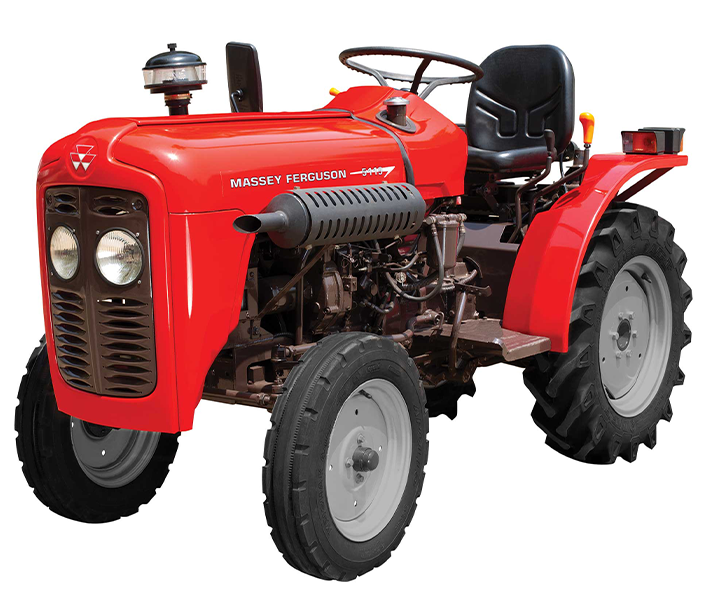

MF-5118 (20 HP)

MF-5118 (20 HP)


Power Range (hp range) <20 HP range
Cylinders 1
Cubic Capacity 825
Fuel Injection Pump Inline
Clutch Type Single diaphragm
Transmission Type Sliding mesh
Number of Speed 8 Forward + 2 Reverse
Tyre Dimension 4.75 x 14 (12.06 cm x 35.56 cm) Front 8 x 18 (20.32 cm x 45.72 cm) Rear
Forward Speed @ rated RPM 21.68 kmph
PTO Type Live, Two-speed PTO
PTO Speed 540 RPM @ 2180 ERPM
540 E @ 1480 ERPM

Hydraulics Lifting Capacity (Lower Links at Horizontal Position)

750 kgf
Break Type Multi disc oil immersed brakes
Steering Type Manual steering
Overall Length 2595 mm
Overall Width 950 mm
Overall Height 1300 mm
Wheelbase 1436 mm
Total weight 790 Kg
Fuel Tank Capacity 28.5 L
Engine 182E15

Three-point Linkage and Controls

Draft, position and response control. Links fitted with CAT-1N
Electricals 12 V 75 Ah Battery, 12 V 35 A Alternator
