Harvel Tractors

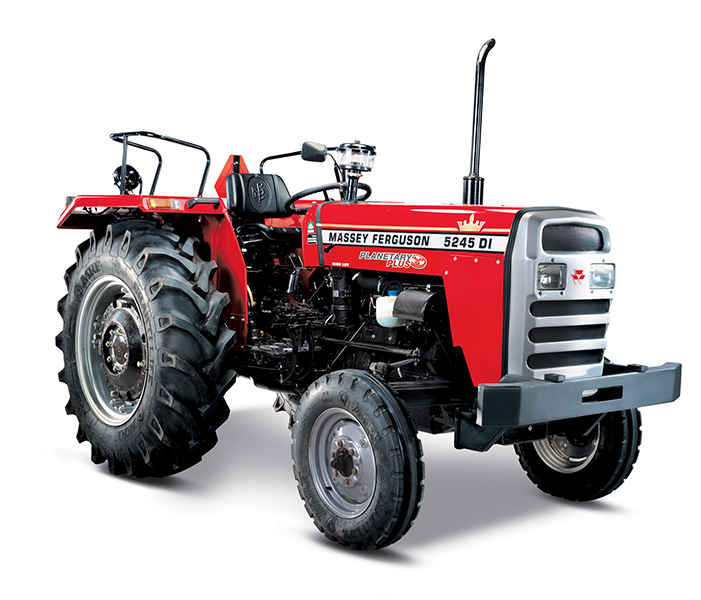

MF 5245 DI (50HP)

MF 5245 DI (50HP)



Power Range (hp Range)  HP Range - 50
Cylinders 3
Cubic Capacity Cubic Capacity (cc) - 2700
Fuel Injection Pump Inline
Clutch Type Clutch type - Dual Dry
Transmission Type Transmission Type - Partial constant mesh
Number of speeds - 8 Forward + 2 Reverse
Tyre Dimensions Tyre Dimensions - 6.00 x 16 Front, 14.9 x 28 Rear
Forward Speed @ rated RPM 34.8 Kmph
PTO Type PTO Type - Live, six splined shaft
PTO Speed PTO Speed - 540?RPM @ 1790 ERPM

Hydraulics Lifting Capacity (Lower Links at Horizontal Position)

Lifting capacity (Lower links at horizontal position) - 1700 kgf
Three point linkage and controls - Draft, position and response control. Links fitted with Cat 1 and Cat 2 balls (Combi Ball)?
Brake Type Brake Type - Oil immersed brakes
Steering Type Steering Type - Manual steering
Overall Length 3380 mm
Overall  Width 1715 mm
Overall Height 2200 mm
Wheelbase 1785 mm
Total Weight 2100 kg
Fuel Tank Capacity 47 L
Electrical 12 V 75 Ah Battery,
12 V 36 A Alternator
