Harvel Tractors

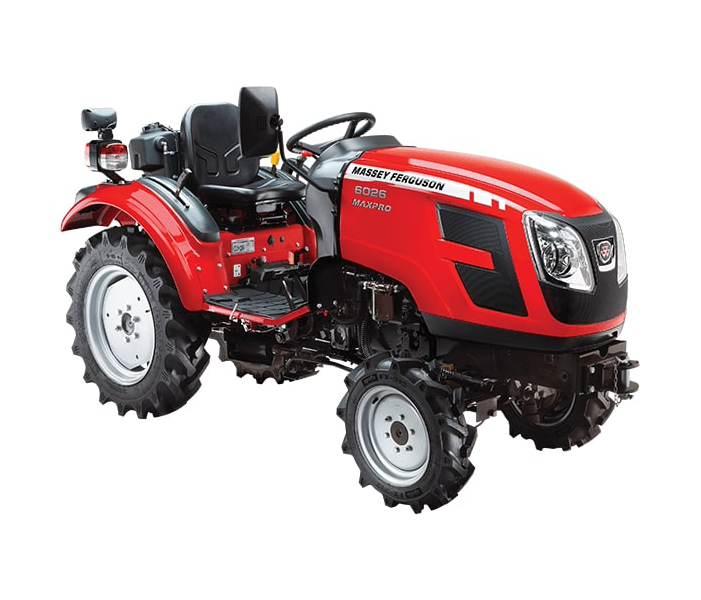

MF 6026 4WD (26HP)

MF 6026 4WD (26HP)



Power Range (hp Range) 19.1 kW (26 hp)
Engine MVS3L2-T3CC10
Cylinders 3
Fuel Injection Pump Inline
Cubic Capacity 1318 cc (1.31L)
Clutch Type Single diaphragm
Transmission Type Partial constant mesh
Number of Speeds 9 Forward + 3 Reverse
Tyre Dimensions 12.7 cm x 30.48 cm (5 x 12) Front
20.32 cm x 45.72 cm (8 x 18) Rear
Forward Speed @ rated RPM 23.3 km/h
PTO Type Live, Two speed PTO
PTO Speed 540 RPM @ 2322 ERPM
750 RPM @ 2450 ERPM
Hydraulics Lifting Capacity (Lower Links at Horizontal Position) 739 kgf
Three-point Linkage and Controls CAT-1, Draft with Auto Sense, position and response control.
Brake Type Multi disc oil immersed brakes
Steering Type Power steering
Electricals 12 V 65 Ah Battery, 12 V 65 A Alternator
Overall Length 2960 mm
Overall Width 930 mm
Overall Height 1290 mm
Wheelbase 1550 mm
Total Weight 980 kg
Fuel Tank Capacity 23 L
