Harvel Tractors

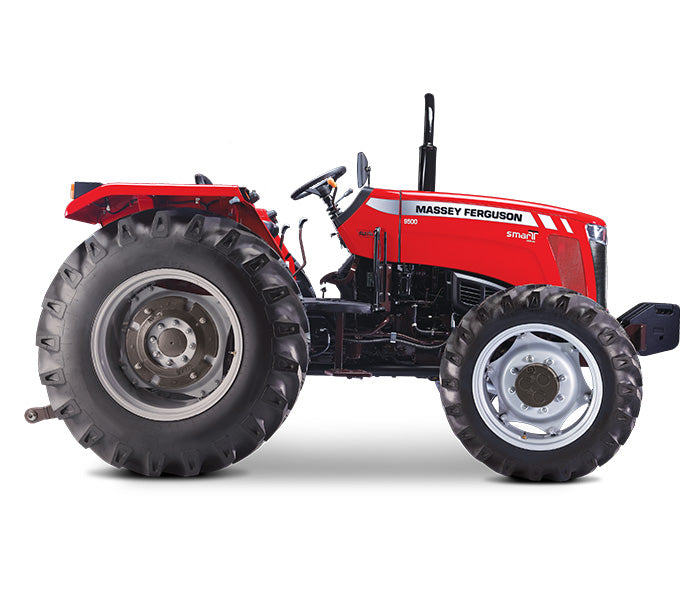

MF 9500 4WD SMART (58 HP)

MF 9500 4WD SMART (58 HP)



Power Range (hp Range) 58 HP (42.65 kW)
Engine SIMPSONS SJ327E TIII A
Cylinders 3
Cubic Capacity 2700 cc (2.70L)
Fuel Injection Pump Rotary
Clutch Type Dual
Transmission Type Comfimesh
Number of Speeds 8 Forward + 8 Reverse
Tyre Dimensions 9.5 x 24 (24.13 cm x 60.96 cm) Front
16.9 x 28 (42.93 cm x 71.12 cm) Rear
Forward Speed @ rated RPM 31.3 kmph
PTO Type LPTO
PTO Speed 540 RPM @ 1790 ERPM
Hydraulics Lifting Capacity (Lower Links at Horizontal Position) 2050 kgf
Three-point Linkage and Controls Draft, position and response control. Links fitted with CAT-1 and CAT-2 balls (Combi Ball)
Brake Type Oil immersed brakes
Steering Type Power steering
Electricals 12 V 88 Ah Battery, 12 V 35 A Alternator
Overall Length 3890 mm
Overall Width 1855 mm
Overall Height 2310 mm
Wheelbase 1972 mm
Total Weight 2810 kg
Fuel Tank Capacity 70 L
View full details
